Multi-tasking Machine

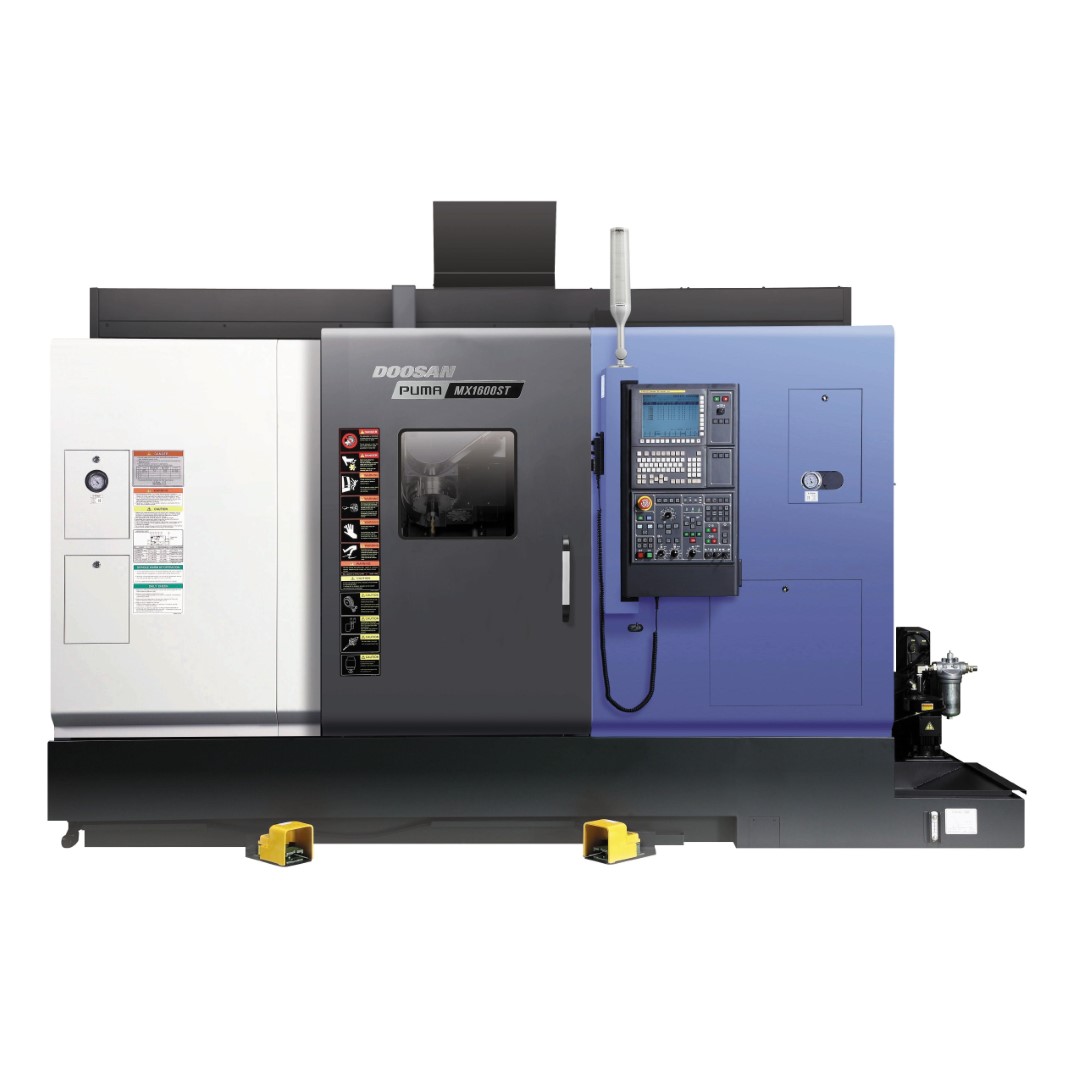

- Puma MX 1600/ S/ T/ ST, Puma MX 1600S/ 735, Puma MX 1600T/ 735
- Puma MX 2100 S/ T/ ST/ L/ LS/ LT/ LTS
- Puma MX 2600/ T/ST
Puma MX Series
Description
The MX Series is a roller linear guideway multi-axis and multi-tasking turning and milling machine.
PUMA MX series machines feature 3 high-performance spindles and a lower turret.
Description:
- 0.001-degree precision control function of B-axis and C-axis enables high-precision machining.
- Minimized thermal displacement of spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs. Easy and convenient functions
- Safety design to decrease collision-caused damage.
- Side-to-side movable swiveling operation panel with adjustable height settings.
- User friendly work guidance function.
| Machine | Chuck (inch) |
Max. Machining Dia. mm(inch) |
Max. Machining Length mm(inch) |
Spindle Speed Main/Milling (r/min) |
Motor Main/Sub/Milling kW(Hp) |
|---|---|---|---|---|---|
| PUMA MX1600 | 6 | 330(13.0) | 900(35.4) | 6000/12000 | 15(20.1)/-/9(12.1) |
| PUMA MX1600/735 | 6 | 330(13.0) | 700(27.6) | 6000/12000 | 15(20.1)/-/9(12.1) |
| PUMA MX1600S | 6 | 330(13.0) | 900(35.4) | 6000/12000 | 15(20.1)/15(20.1)/9(12.1) |
| PUMA MX1600S/735 | 6 | 330(13.0) | 700(27.6) | 6000/12000 | 15(20.1)/15(20.1)/9(12.1) |
| PUMA MX1600T | 6 | 330(13.0) | 900(35.4) | 6000/12000 | 15(20.1)/-/9(12.1) |
| PUMA MX1600T/735 | 6 | 330(13.0) | 700(27.6) | 6000/12000 | 15(20.1)/-/9(12.1) |
| PUMA MX1600ST | 6 | 330(13.0) | 900(35.4) | 6000/12000 | 15(20.1)/15(20.1)/9(12.1) |
| PUMA MX1600ST/735 | 6 | 330(13.0) | 700(27.6) | 6000/12000 | 15(20.1)/15(20.1)/9(12.1) |
| PUMA MX2100/L | 8 | 540(21.3) | 1020/1520 (40.2/59.8) |
5000/12000 | 22(29.5)/-/18.5(24.8) |
| PUMA MX2100S/LS | 8 | 540(21.3 | 1020/1520 (40.2/59.8) |
5000/12000 | 22(29.5)/22(29.5)/18.5(24.8) |
| PUMA MX2100T/LT | 8 | 540(21.3 | 1020/1520 (40.2/59.8) |
5000/12000 | 22(29.5)/-/18.5(24.8) |
| PUMA MX2100ST/LST | 8 | 540(21.3) | 1020/1520 (40.2/59.8) |
5000/12000 | 22(29.5)/22(29.5)/18.5(24.8) |
| PUMA MX2600T | 10 | 760(29.9) | 1540(60.6) | 4000/12000 | 26(34.9)/-/22(29.5) |
| PUMA MX2600ST | 10 | 760(29.9) | 1540(60.6) | 4000/12000 | 26(34.9)/26(34.9)/22(29.5) |
L : Long bed S : Sub spindle T : Turret
* Sub spindle : 4000 r/min
