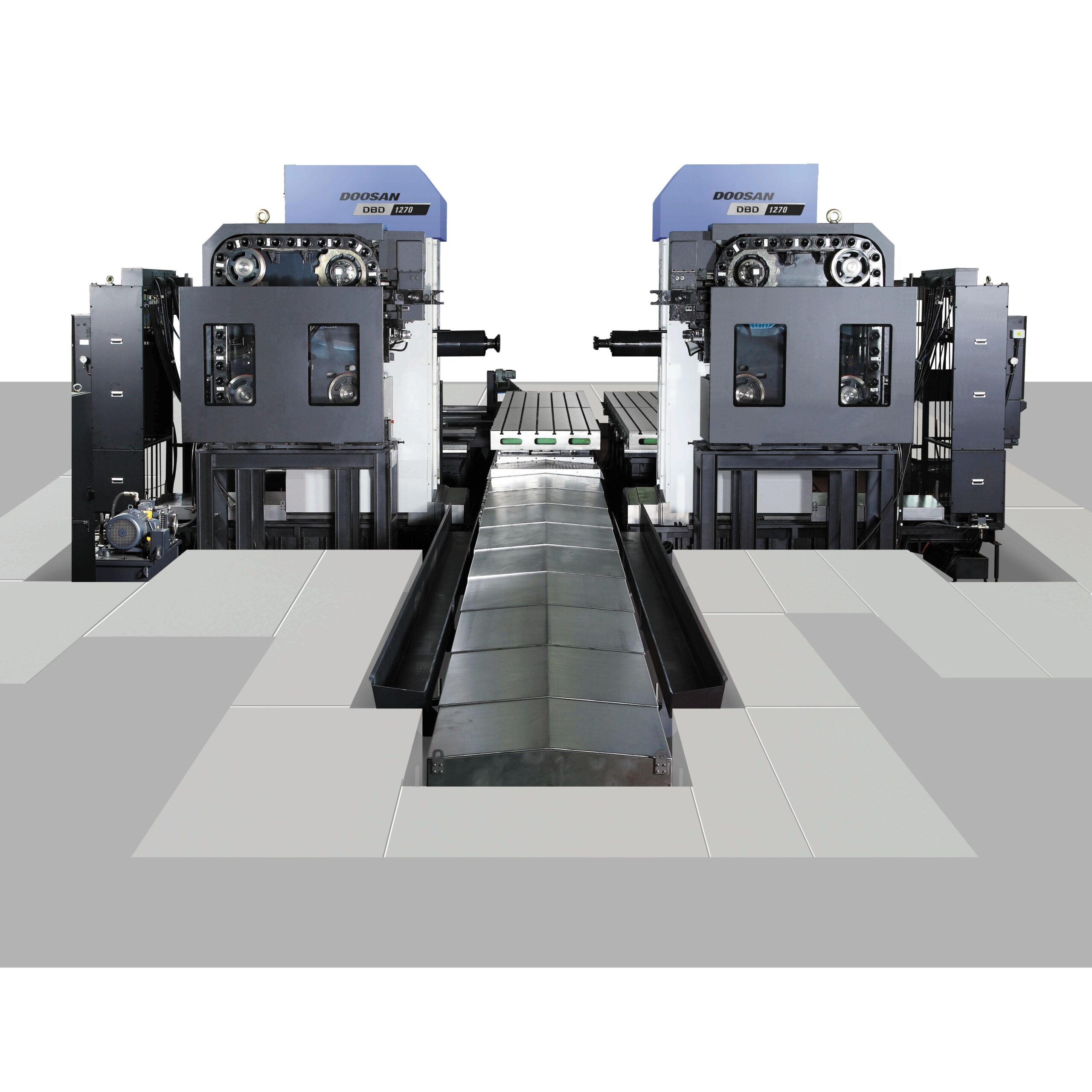

Double-ended Boring Machine for Symmetrical Workpieces
- DBD 1270
- DBD 1580
DBD Series Doosan
Description
DBD Series from Doosan are Double-ended Boring Machine for Symmetrical Workpieces, for large sized work-piece. This series offers twin opposed spindles are optimized for concentric boring. High-precision and high-productivity can be ensured via the simultaneous and bidirectional machining of long and symmetrical workpieces.
| Machine | X / Y / Z/ W Travel mm(inch) |
Table Size mm (inch) |
Spindle Speed (r / min) |
Tool Storage (ea) |
Motor * kW (Hp) |
|---|---|---|---|---|---|
| DBD 1270 | 7000 / 1500 / 1000 / – (275.6 / 59.1 / 39.4 / – |
1250 x 7000 (49.2 x 275.6) |
3000 | { 40, 60 } | 26/22 (34.9/29.5) |
| DBD 1580 | 8000 / 2000 / 450 / 500 (315.0 / 78.7 / 17.7 / 19.7) |
1500 x 8000 (59.1 x 315.0) |
2500 | { 40, 60 } | 26/22 (34.9/29.5) |
{ } : Option * 30min/Cont.
